A Technical Note
Computational
Reflective Imaging
A third photographic display principle
Not print. Not screen. A photograph displayed by computed reflective geometry.
Two photographic display principles
have carried photographs to viewers since the medium's invention.
Computational Reflective Imaging
introduces a third.

Not print. Not screen. A photographic image encoded into permanent reflective geometry, resolved by ambient or prepared light at the viewer's position — without ink, pigment, or an active electronic display surface.

A Flective image has the material presence of a print and the visual immediacy of a display — without being printed or electronic. Its apparent brightness comes from redirected ambient or prepared light, not emitted light.

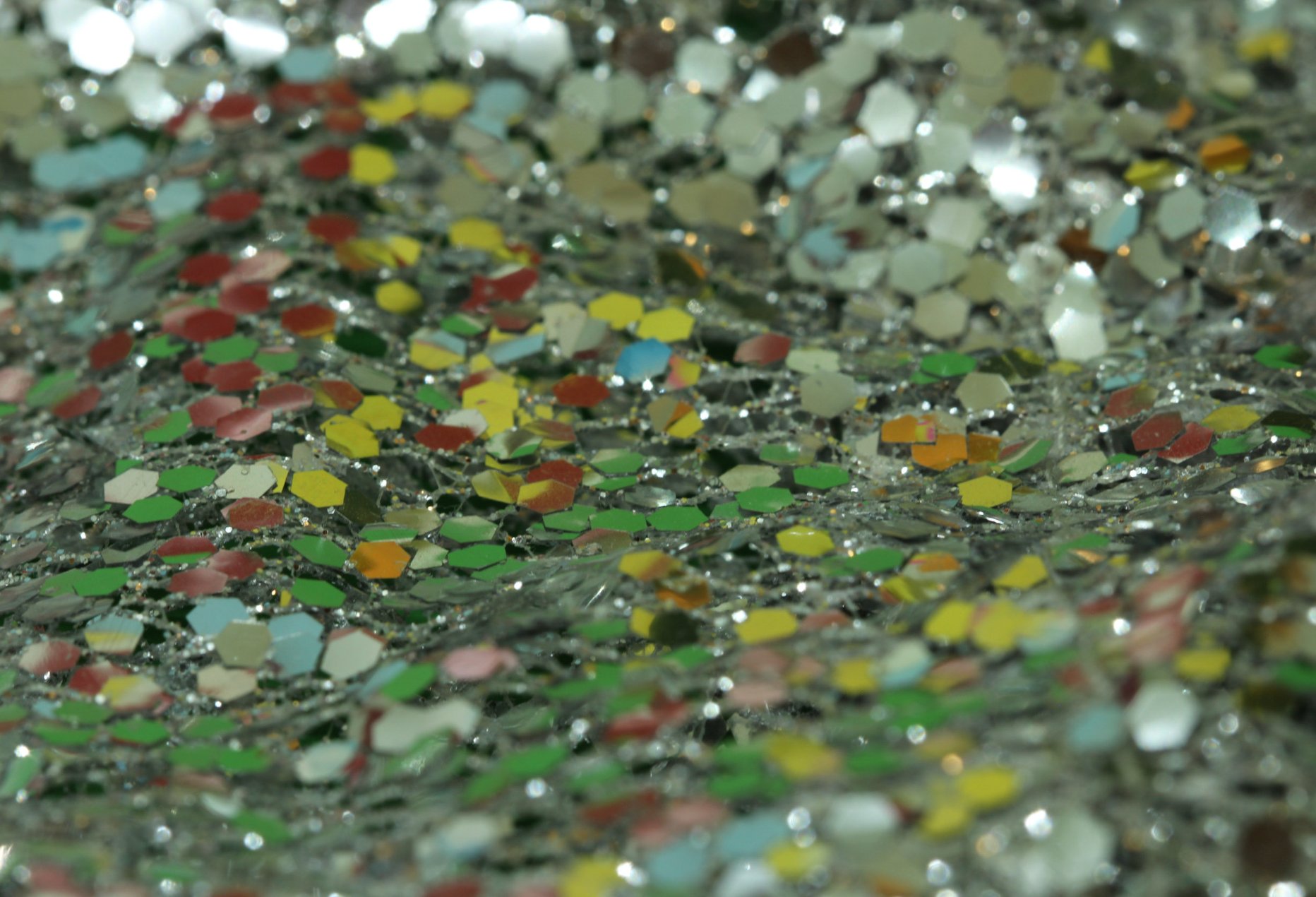

Loose hexagonal mirror sequins, each reflecting a different portion of the ambient light field
The phenomenon

Loose mirror sequins, scattered at random. No image has been designed. No arrangement has been planned. And yet every disc is showing a different color — the color of whatever portion of the room it happens to be facing. Each one is a pure mirror. The colors are reflections, not pigment. The room itself, fractured into a thousand simultaneous angles.

Now imagine those angles were computed — each one aimed precisely so that, from a single viewer position, every disc resolves as part of a designed image. That conversion — from random reflection to computed reflection — is Computational Reflective Imaging.

No screen. No ink. No electronics.
Only geometry, light, and a viewer.

The mechanism

How it works

The ambient light field surrounding any point in space contains a directional distribution of color and brightness — different visual information arriving from different directions. A precisely angled mirror surface is a directional selector: it intercepts light arriving from one specific angle and redirects it toward one specific position in space.

Computational Reflective Imaging applies this principle deliberately, at scale. For a given viewer position and target image, the required orientation of each mirror facet is calculated. The surface is then fabricated to those specifications — an array of thousands of facets, each facing a slightly different direction, which collectively resolve as a designed image from the designed position, and only from that position.

The encoding is fixed in the surface geometry. The surface carries no light source, no active elements, no pigment layer. The geometry is the instruction; the image is resolved in light.

The computation does not live in the object as electronics. It is crystallized into the object as form. Unlike a screen — which sustains an image through continuous calculation and power draw — a CRI surface carries its computation resolved and complete. The design software ran once. The fabricated geometry is the resolved result. It requires no refresh, no calibration, no ongoing process to persist.

Unlike a conventional print or screen, a Flective image is not bound to a uniform pixel grid. Its reflective elements can vary in size, shape, density, angle, and optical behavior across the surface. That gives the medium an unusual photographic design space: dynamic range, color behavior, resolution, and viewpoint effects can all become part of the authored image.

A broader category

Image-making as
surface treatment

A Flective image is made from the computed shape of a surface. More precisely: a computed shape, a designed light field, and a specified viewer position. The surface itself may be aluminum, glass, or any material capable of holding precise facet geometry.

Buildings, cities, products, signs, interiors, and public spaces are already made of surfaces. CRI gives selected surfaces a new role: not merely enclosing, covering, decorating, or reflecting, but resolving visual information from the light already present around them.

A Flective surface is not merely installed in a place; it is optically authored for it. Because the geometry is computed in relation to the local light field, a surface can be designed around the light, colors, viewing positions, and intended moments of use in a particular place. In that sense it is a kind of optical document: a physical surface encoded with knowledge of its surroundings.

CRI operates at any scale where geometric optics applies — from panel-scale to architectural and beyond. The practical lower bound is the point at which facet size approaches the wavelength of light, where diffraction replaces specular reflection. Above that threshold, the governing limits become practical ones: fabrication precision, material choice, viewing distance, installation geometry, durability, and cost.

A different kind of existence

What kind of thing is this image?

A print carries its image in silver, dye, ink, or emulsion — present whether or not a viewer is. A screen carries it as an active pixel state, which exists only while the device is powered. In either case, the image is fixed to a carrier and waits.

A CRI surface is different in kind, not merely degree. It stores geometry, not the completed image. The image does not exist in the substrate. It exists only at the convergence of three conditions:

Geometry
Fixed in its geometry and passive. The encoding does not change; the surface waits.
Light
The ambient light of the location — directional, variable, and never quite the same twice.
Viewpoint
A viewer at the designed position. From elsewhere, the image shifts or disappears.

Remove any one of these conditions and the image does not become invisible. It ceases to exist as an image at all.

This is not a limitation of the medium. It is what makes it a different kind of image: not a fixed visual object, but a condition resolved by geometry, light, and viewpoint. The surface persists. The image is resolved in use.

More complex CRI surfaces can be designed for multiple viewing positions, multiple image states, or controlled transitions across a viewing path — expanding the operational envelope beyond a single fixed viewpoint.

In a photographic print, color lives in the surface — in the silver, dye, or ink. In an electronic display, color is produced inside the device by emissive pixels and backlights. In a CRI surface, the surface stores geometry. Color-bearing light comes from elsewhere: from the room, the sky, windows, walls, fixtures, or a prepared light source. CRI decouples the image surface from the color source. The surface is not the color. The surface is the instruction set for color-bearing light.

Historical context

Why now

Every imaging medium has a technological precondition — a capability that had to exist before the medium could be realized.

Photography
required photochemistry — the photosensitive compound, the developing process.
Cinema
required precision mechanics — the shutter, the projector, the frame rate.
Electronic display
required semiconductor physics — the electron gun, the pixel array, the backlight.
CRI
requires computation and digital fabrication — two technologies that matured in the same decade.

To compute the required orientation of thousands of mirror facets given a specified viewpoint and target image requires calculation at a scale that was not practically available before the turn of the twenty-first century. To fabricate those orientations with sufficient precision at scale requires digital manufacturing methods that reached commercial availability around the same time.

CRI is unusual among image media because computation is not merely used to prepare or process the image. It defines the physical geometry by which the image is formed. The surface does not emit light, absorb it as pigment, or transmit it as a projection screen. It redirects the ambient light field according to a designed spatial function encoded in the fabricated geometry.

On prior art

Why not earlier

The physics is not new. Angle-dependent reflection from mirrored surfaces has been understood since antiquity. The ambient light field — the fact that any illuminated point in space is simultaneously reached by light from every direction at once — is a basic consequence of how light propagates. Neither fact was hidden.

What was absent was the synthetic move: the recognition that these familiar facts, taken together and applied deliberately at scale, constitute a method for encoding spatial image functions into fabricated physical geometry.

CRI is not the invention of new physics. It is the organized application of existing physics to a purpose those physics were always capable of serving. The physics was waiting. The question had not yet been asked.

This is a familiar pattern in invention: known facts becoming useful only after a new organizing concept appears.

Flective is the first creative and commercial development of Computational Reflective Imaging — producing portrait-scale reflective color works, architectural installations, and public demonstrations of the medium.

The work is grounded in seven issued U.S. patents covering computational reflective imaging. An early physical study produced at Autodesk Pier 9 — where Flective was invited to develop the work, with Autodesk contributing CNC milling time, printing resources, and technical collaboration — entered the Autodesk permanent collection in 2014.

Further information
Flective is the first creative and commercial implementation of CRI. To request technical notes, patent references, collaboration materials, or early project information, contact hello@flective.com.
